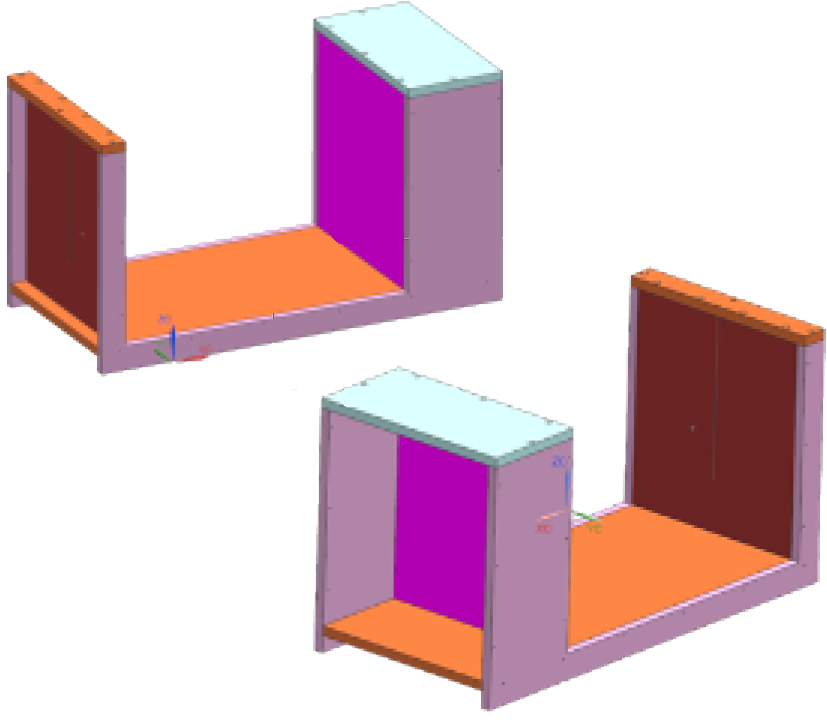

RAD2 Bill of Materials
| Part Number | Material | Quantity | Description | Finish |
|
|---|---|---|---|---|---|

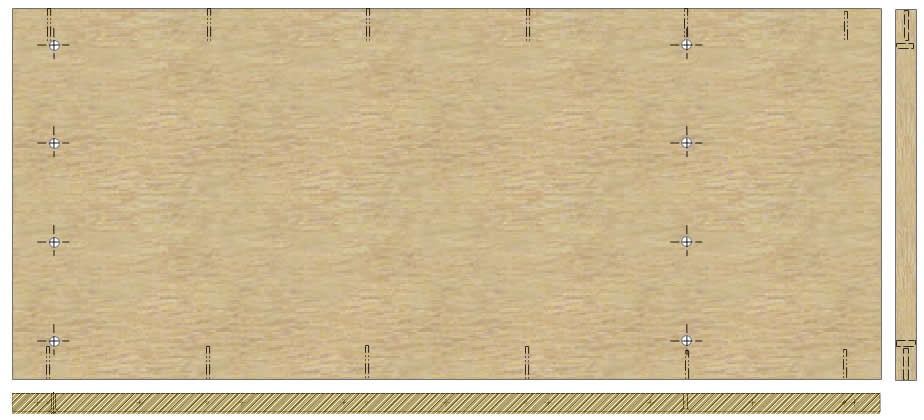

| RAD0001 | Birch Plywood 18 mm | 1 | Base Panel | White Paint |  |

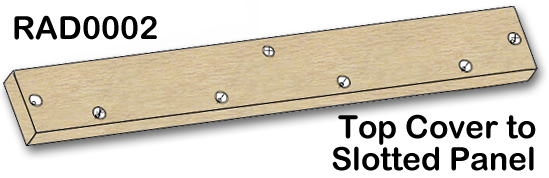

| RAD0002 | Birch Plywood 18 mm | 1 | Top Cover To Slotted Panel | White Paint |  |

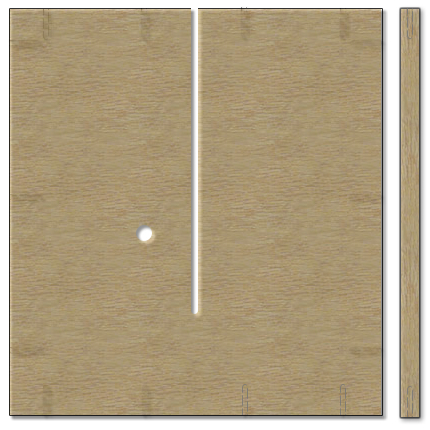

| RAD0003 | Birch Plywood 18 mm | 1 | Slotted Panel | White Paint |  |

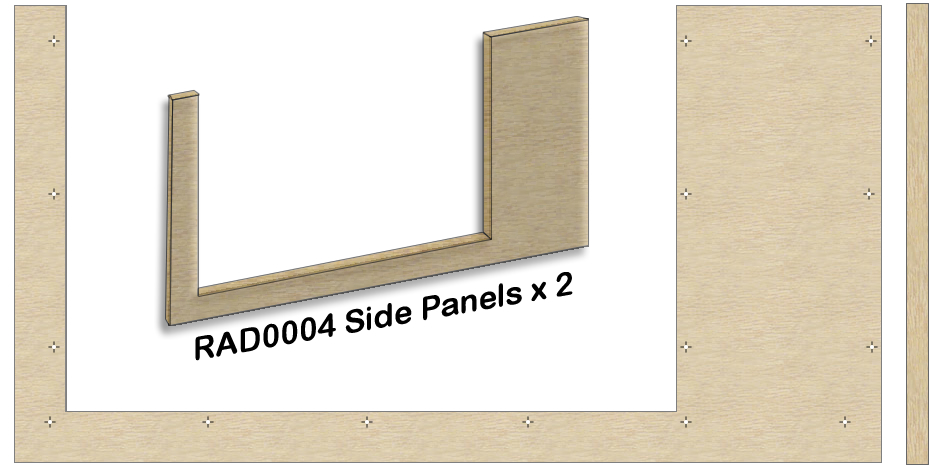

| RAD0004 | Birch Plywood 18 mm | 2 | Side Panels | White Paint |  |

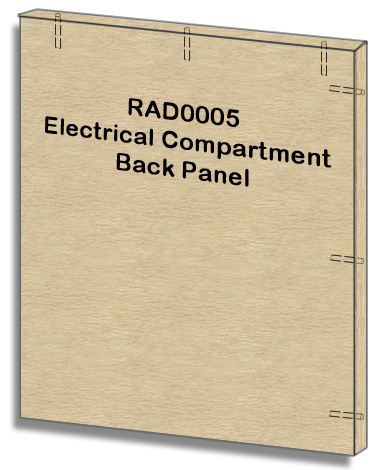

| RAD0005 | Birch Plywood 18 mm | 1 | Electrical Compartment
Back Panel |
White Paint |  |

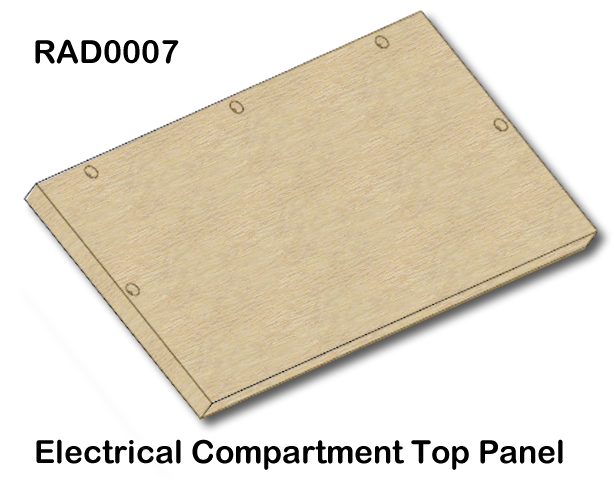

| RAD0007 | Birch Plywood 18 mm | 1 | Electrical Compartment
Top Panel |
White Paint |  |
| Part Number | Material | Quantity | Description | Finish |  |
|---|---|---|---|---|---|

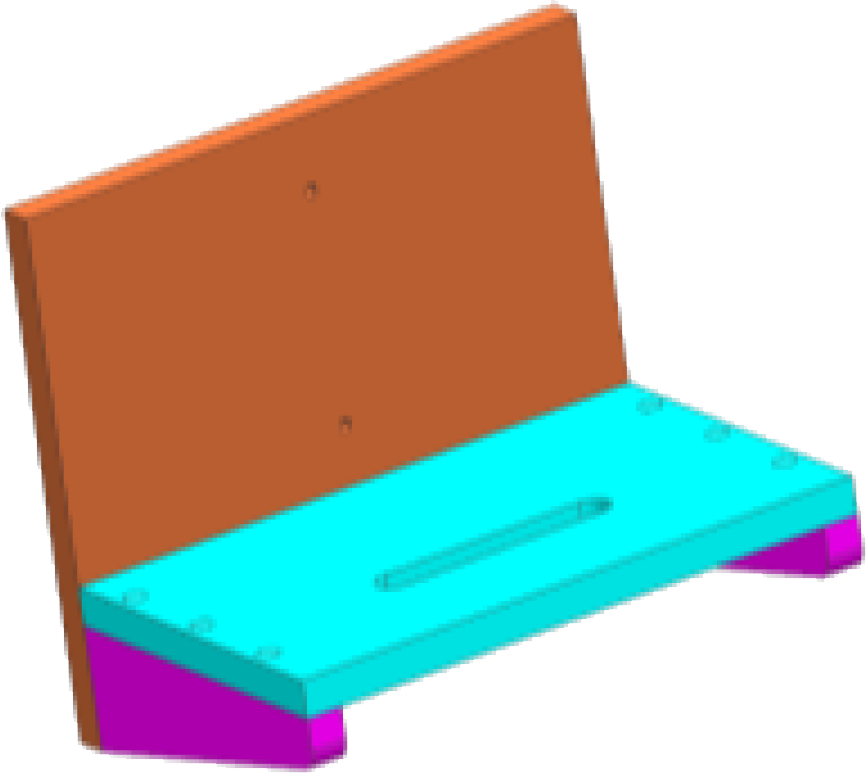

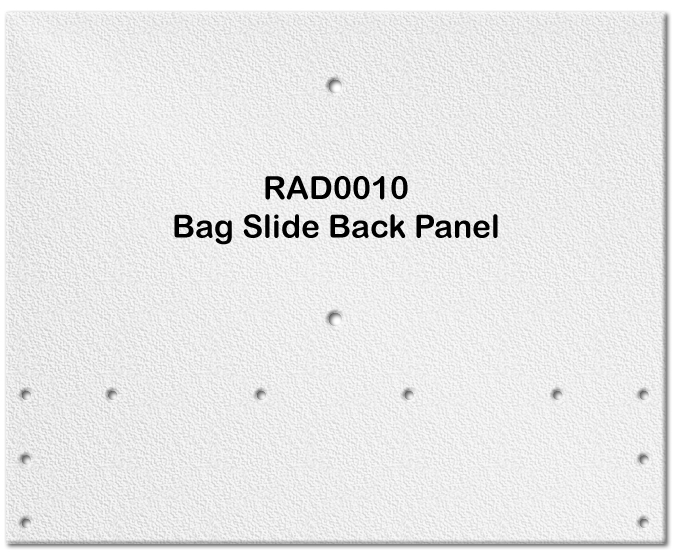

| RAD0010 | Birch Plywood 18 mm | 1 | BVM Shelf Back Panel | White Paint |  |

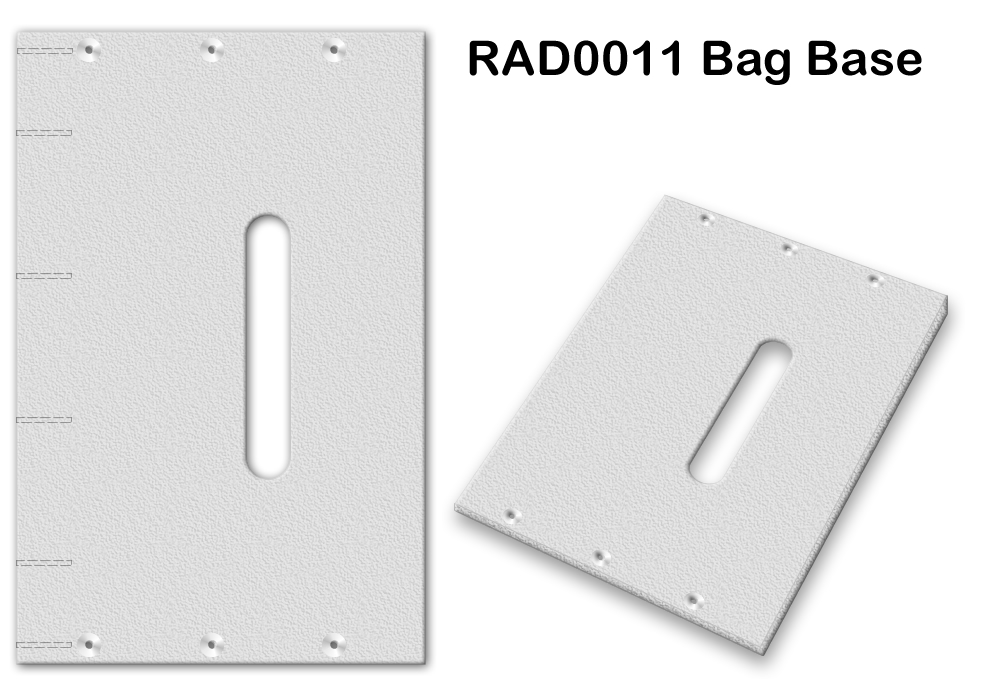

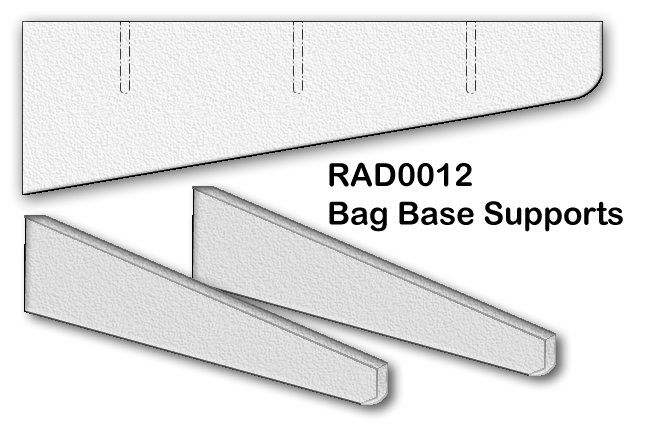

| RAD0011 | Birch Plywood 18 mm | 1 | BVM Shelf | White Paint |  |
| RAD0012 | Birch Plywood 18 mm | 2 | BVM Shelf Supports | White Paint |  |

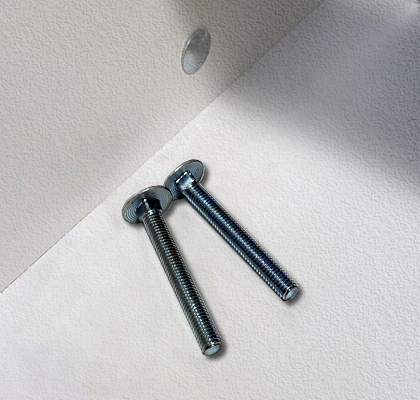

| RAD0070 | STOCK | 2 | M6 x 50 z.p. carriage bolt, penny
washer & Locknut |
 |
|
| RAD0071 | 50mm Adhesive Hook & Loop
Tape (Velcro) |
Delivery Hose
Mounting Tape |
 |
||

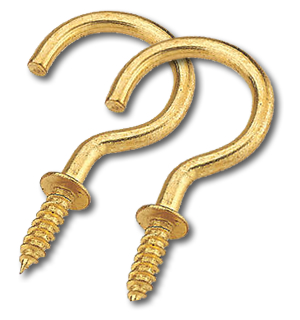

| RAD0071 | STOCK | 4 | Hooked Screws for
Securing Bands |
 |
|

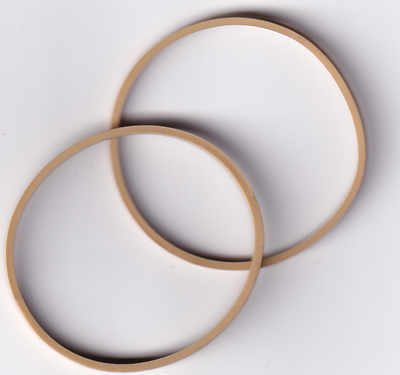

| RAD0071 | STOCK | 2 | Strong Rubber Bands |  |
| Part Number | Material | Quantity | Description | Finish |
|
|---|---|---|---|---|---|

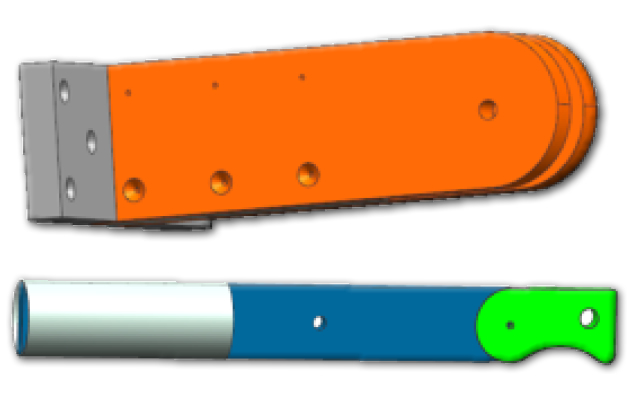

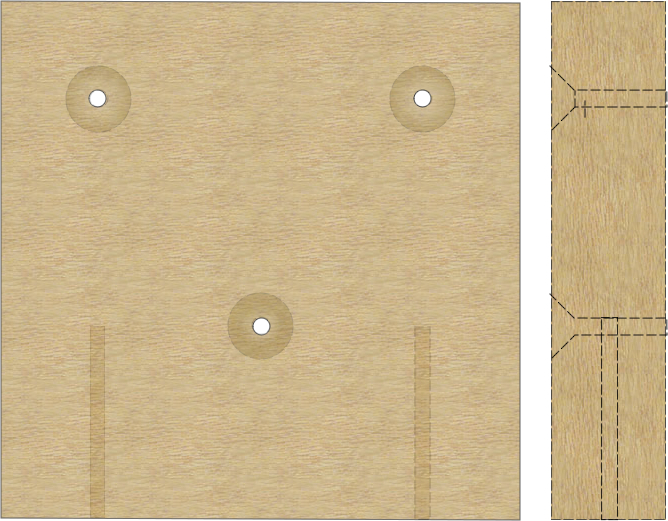

| RAD0020 | Birch Plywood 18 mm | 2 | Actuator Column Base Pieces | White Paint |  |

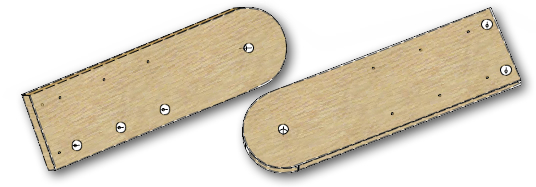

| RAD0021 | Birch Plywood 18 mm | 2 | Actuator Column Outer Pieces | White Paint |  |

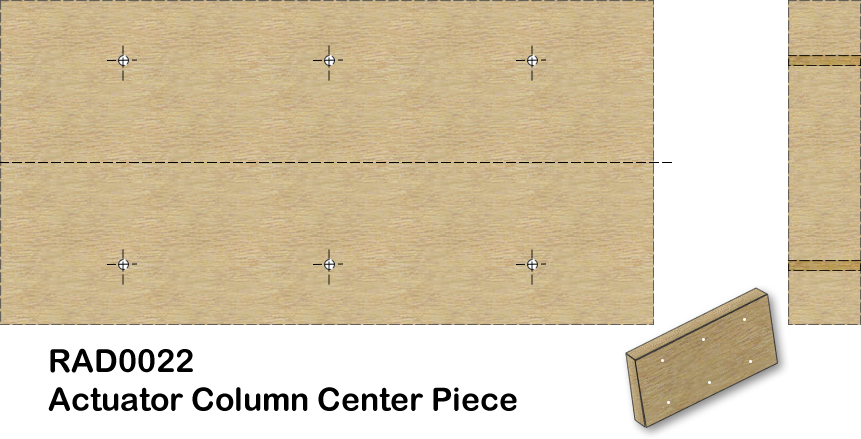

| RAD0022 | Birch Plywood 18 mm | 1 | Actuator Column Center Piece | White Paint |  |

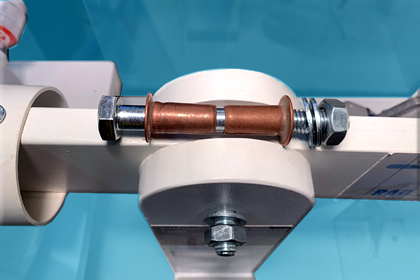

| RAD0023 | STOCK | 2 | PIVOT BUSH
(1/2" Copper Polyadaptor) |
 |
|

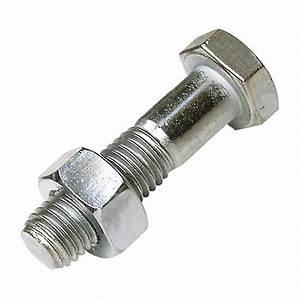

| RAD0024 | STOCK | 1 | M16x50 Nut & Bolt |  |
|

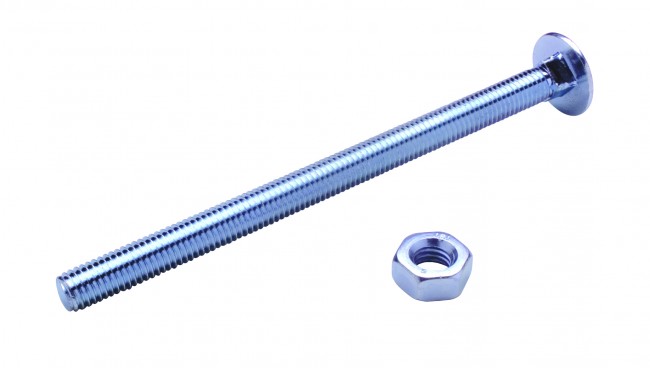

| RAD0025 | STOCK | 1 | M10x75 Bolt & Locknut |  |

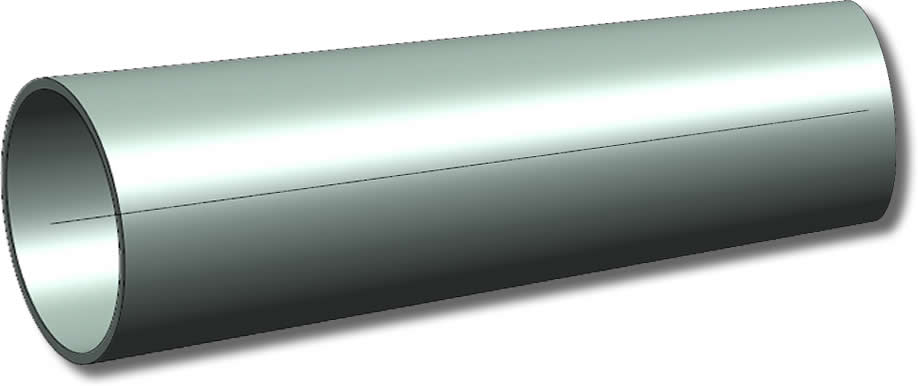

RAD0031 | PVC 68.4mm Ø x 200mm length | 1 | Actuator Cylinder |  |

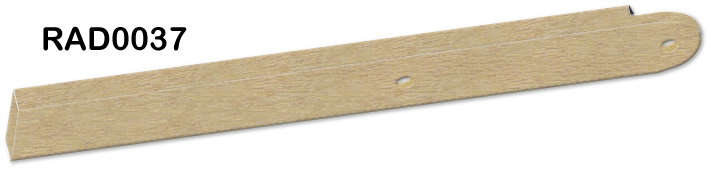

| RAD0037 | Birch Plywood 18 mm | 1 | Articulated Actuator Arm Part 1 | White Paint |  |
| RAD0038 | Birch Plywood 18 mm | 1 | Articulated Actuator Arm Part 2 | White Paint |  |
| Part Number | Material | Quantity | Description | Finish |  |
|
|---|---|---|---|---|---|---|

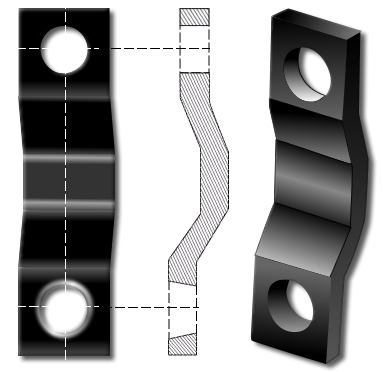

| RAD0018 | Mild Steel 12mm x 5mm | 1 | Crank Arm (43mm Between Centers) |  |
||

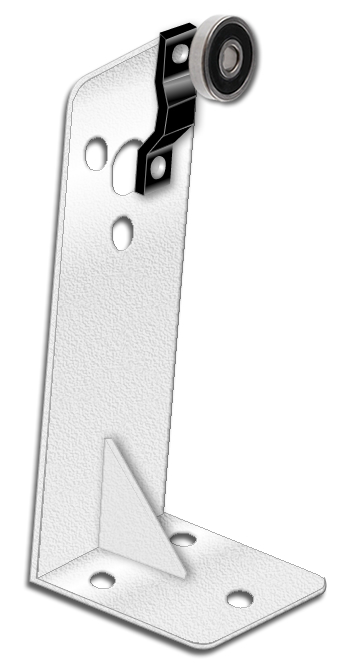

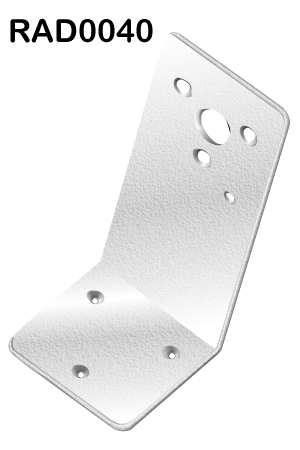

| RAD0040 | Mild Steel 2mm | 1 | Motor Mounting Bracket | Powder Coat White |  |
|
| RAD0045 | Gusset | 1 | Angular Stiffening Gusset | Powder Coat White |  |
|

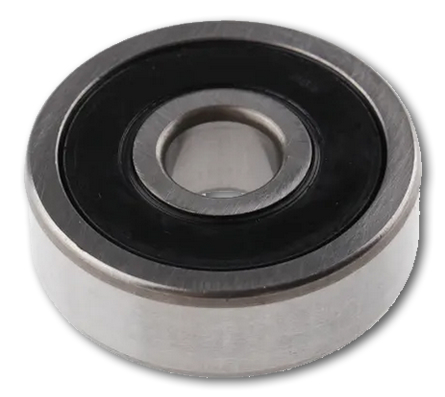

| RAD0048 | STOCK | 1 | 6300 Roller Bearing (35mm Ø outside 10mm Ø inside) |  |
||
| RAD0049 | STOCK | 1 | M10 x 1.75 x 50mm Bolt (6300 Bearing Shaft Assy.) |  |
||

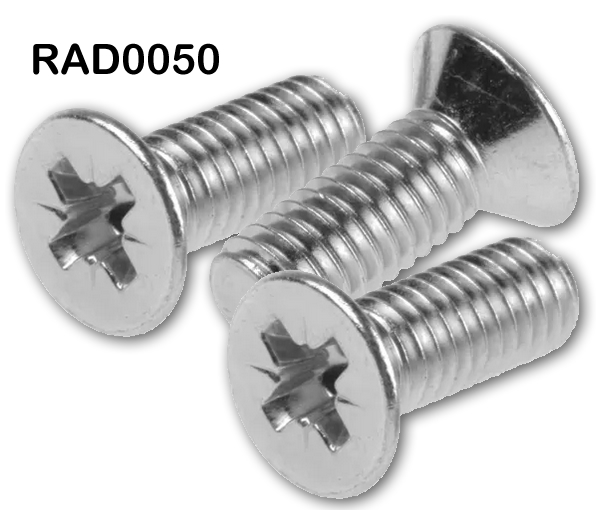

| RAD0050 | STOCK | 3 | Motor Mounting Kit (M6 x15mm Countersunk Screws) |  |
| Part Number | Material | Quantity | Description | Finish |  |
|---|---|---|---|---|---|

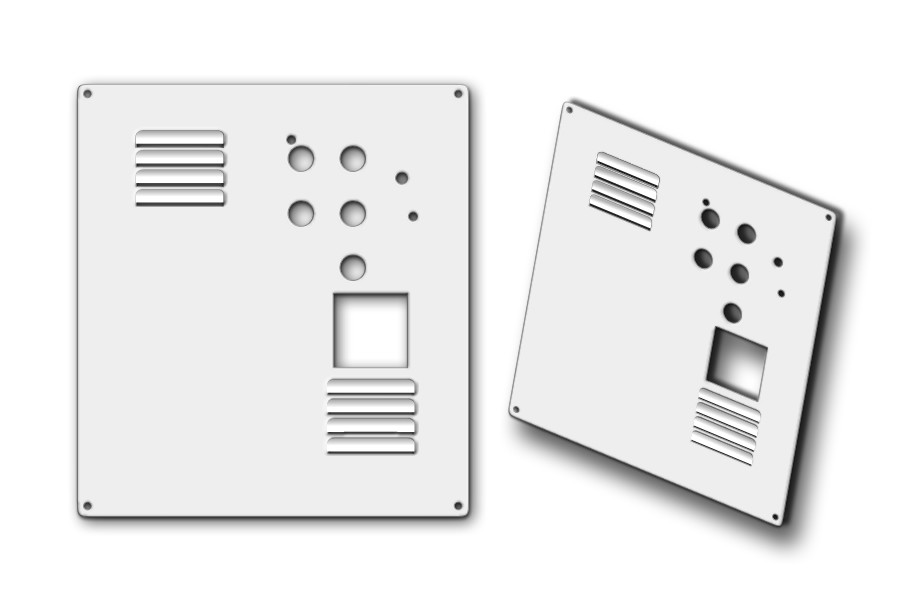

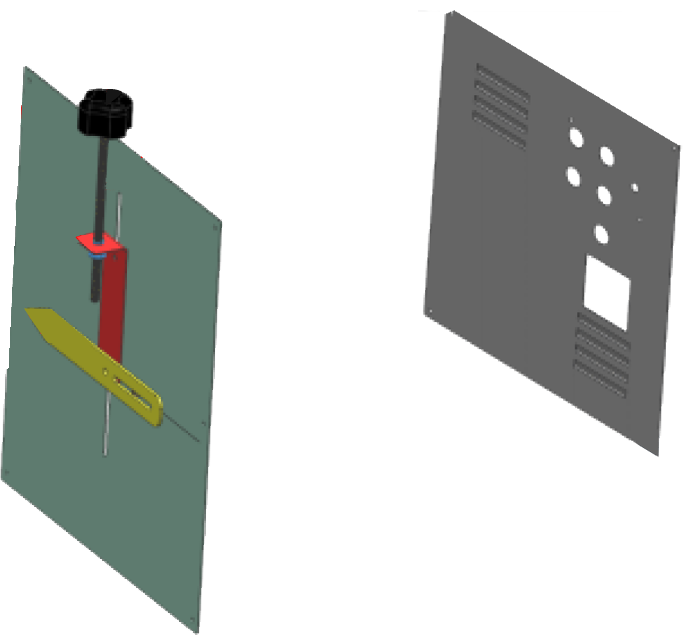

| RAD0009 | Mild Steel 1.5mm | 1 | Electrical Compartment Door Panel | Powder Coat White |  |

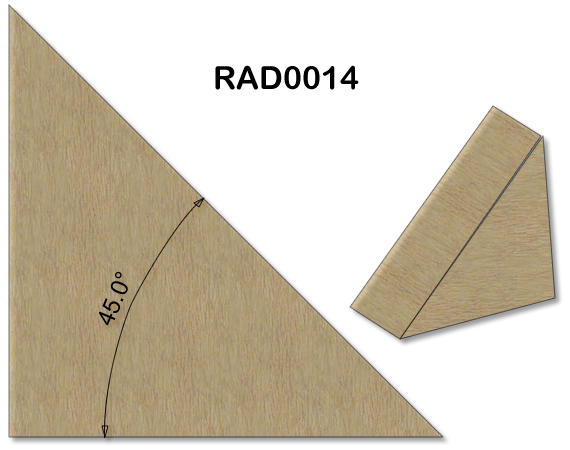

| RAD0014 | Birch Plywood 18 mm | 4 | Electrical Compartment Door Panel Fixing Stops | White Paint |  |

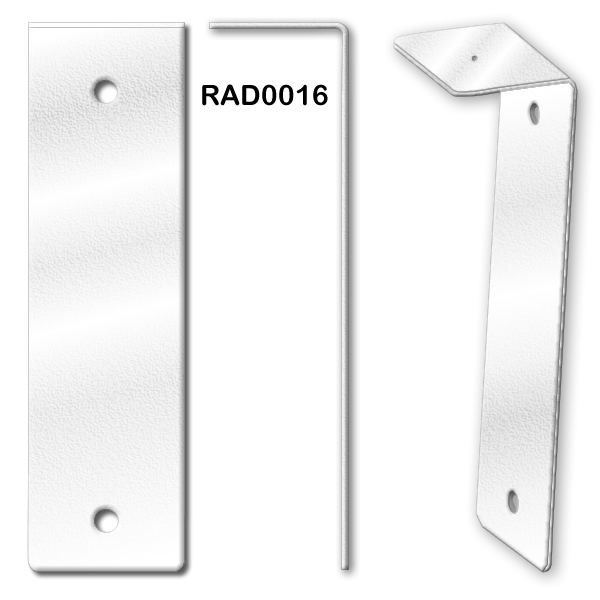

| RAD0016 | Mild Steel 1.5mm | 1 | Tidal Volume Adjustment Bracket | Powder Coat White |  |

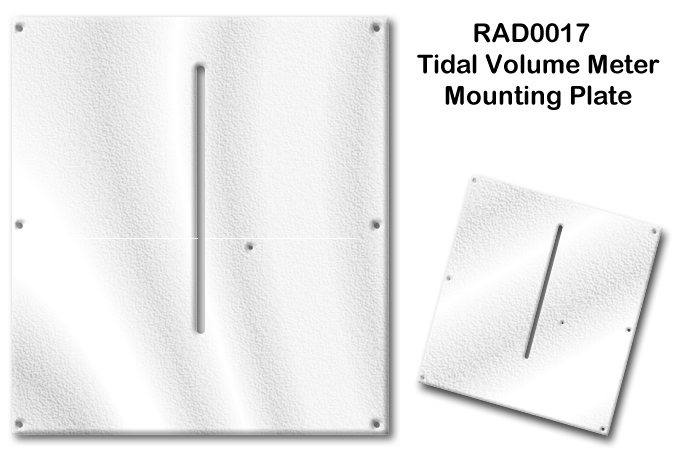

| RAD0017 | Mild Steel 1.5mm | 1 | Tidal Volume Mounting Plate | Powder Coat White |  |

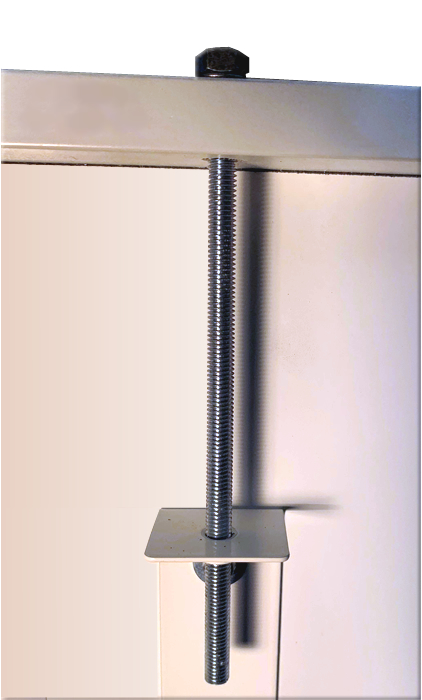

| RAD0025 | M8 Plated threaded rod x 185mm | 1 | Tidal Volume adjustment rod
(plated plus M8 nut & washer) |
 |

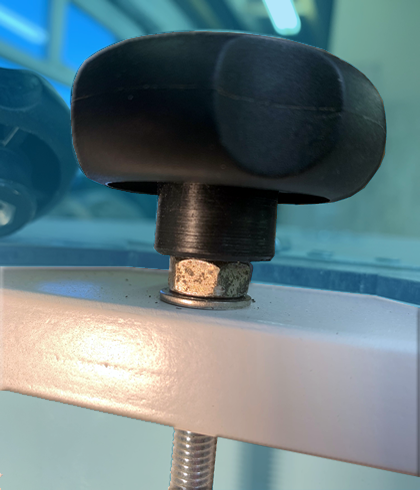

RAD0026 | M8 Female Handwheel | 1 | Tidal Volume adjusting Handwheel
(Plastic 50mm Ø nom.) |
 |

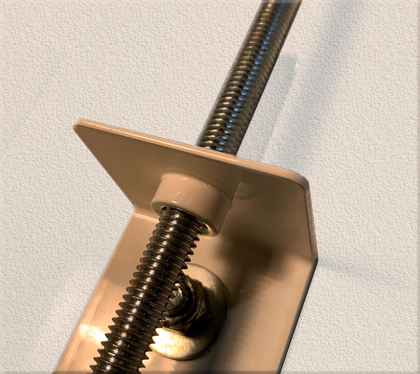

| RAD0027 | M8 Rivnut or Welded-on Nut | 1 | Threaded Guide on RAD0016
(Tidal Volume Adjustment Bracket) Steel Plated |
 |
|

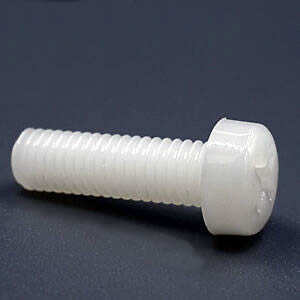

| RAD0027a | M6 Nylon Screw x 25mm | 1 | Guide screw on slot of RAD0036
(Tidal Volume Indicator Arm) |
 |
|

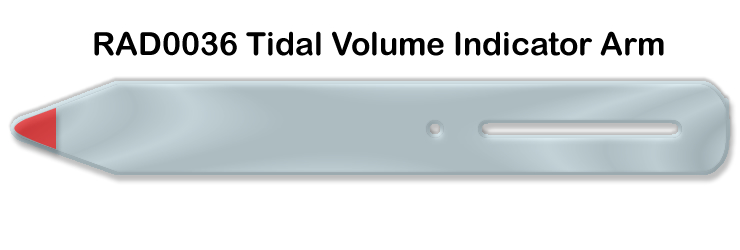

| RAD0036 | 3mm PETG with self-adhesive
vinyl film pointer |
1 | Tidal Volume Indicator Arm | Clear |  |
